SANIPRO UPFLUSH TOILET DETAIL SPECIFICATIONS
Specifications:
Dimensions:
Including Pump Only
H12" x W17" x D9"
H30cm x W43cm x D23cm
Motor: Induction Motor
(no carbon brushes or gears), tested over 30,000 cycles. 3600 rpm.
Electrical supply:
110-115V; 60Hz; 4.0amps
Discharge:
Horizontally to 150 ft (50m)
Pumps vertically to 12 ft (4m)
Gravity Fall on Horizontal installations: 1/4" per ft
Discharge Pipe Diameter: 3/4"; 21mm
Construction Materials: Polypropylene, C.R.P., stainless steel, Neoprene
Max. temp. 104°F; 40°C
Normal Running Time:
10–20 secs subject to installation pipe run
Water per Flush:
1.6 US gal; 6 liters
Volume 9.8 gal/m; 36 l/m
Designed to function with:
Toilet, Hand-basin, Shower.

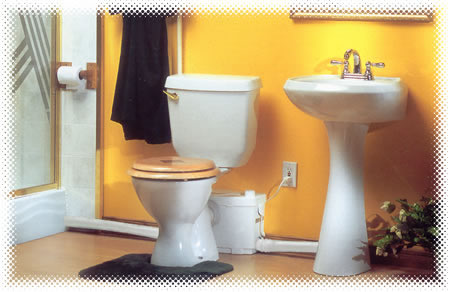

The Sanipro is a smaller version of the Saniplus macerating system. The Sanipro is a system that is used to install a complete bathroom up to 12 feet below the sewer line, or even up to 150 feet away from a soil stack.
The Sanipro is simplicity itself to install; there are just four connections.
The macerating/pump is connected to the spigot of a horizontal outlet toilet.
The toilet tank is connected to the water supply.
The macerating/pump is connected to the small diameter discharge pipe work.
The macerating/pump is connected to the electrical supply.
The inside of the Sanipro comprises of a pressure chamber, which starts and
stops the unit, and the motor, which drives the stainless steel macerator blades
and the pump.
When the flush is activated, the water flowing into the Sanipro activates a
microswitch in the pressure chamber, which in turn starts the motor. The motor
is sealed for life in oil filled enclosure. A common spindle drives the impeller
and the macerator blades. The moving parts therefore are kept to an absolute
minimum. Water and organic waste matter, enter the chamber and are reduced to
slurry as the macerator blades rotate at 3600 RPM. The centrifugal force causes
the reduced solids to be ejected through a grill into the container where it
is picked up by the impeller pump mounted beneath the motor. The pump operates
at 10 PSI and pumps the effluent upward to 12 feet and/or 150 feet horizontally.
Once the water is discharged and the water level in the container goes down,
the microswitch deactivates the unit until the flush is activated again. A normal
operating cycle for Sanipro takes about 15 - 18 seconds depending upon the discharge
pipe run configuration; power consumption is therefore minimal.
In addition to the toilet waste, Sanipro will also discharge gray wastewater from a variety of other sanitary fixtures, such as: a hand basin, shower, a bidet and a urinal. When adding a shower, a base will have to be constructed, made out of 2" x 6" on edge, to allow for the installation of a P-trap and some gravity flow towards the pump unit.
The wastewater from other sanitary fixtures is discharged into Sanipro via two 1 1/2-inch inlets, on either side of the housing. Either one or both inlets can be used as required. The discharge elbow on top of the Sanipro can be turned either to the left or to the right, depending on the discharge installation.
The Sanipro is designed to provide vertical pumping up to 12 feet as well as a horizontal discharge, therefore a simple flapper style check valve is incorporated. It has now become possible to install a complete bathroom where previously this would have been impossible or where considerable capital equipment and structural work would have been necessary.
The water closet the Sanipro is connected to, uses much less water than a regular toilet, it uses 6 liters (1.6 USG) of water per flush.
