SANICOMPACT UP FLUSH TOILET DETAILED SPECIFICATIONS
Specifications:
Dimensions:
Sanicompact C48 toilet
H18½" x W14¾" x D21¾"
H46cm x W37cm x D54cm
Sanicompact Elite toilet
H19½" x W14½" x D22;"
H49cm x W36cm x D55cm
Motor: Induction Motor
(no carbon brushes or gears), tested over 30,000 cycles. 3600 rpm.
Electrical supply:
110-115V; 60Hz; 7.2amps
Discharge:
Horizontally to 100 ft (33m)
Pumps vertically to 9 ft (3m)
Gravity Fall on Horizontal installations: 1/4" per ft
Discharge Pipe Diameter:
1"; 25mm
Construction Materials: Polypropylene, C.R.P., stainless steel, Neoprene
Max. temp. 95°F; 35°C
Normal Running Time:
10–20 secs subject to installation pipe run
Water per Flush:
1.3 US gal; 3.5 liters
Volume 4.08 gal/m; 15 l/m
Designed to function with:

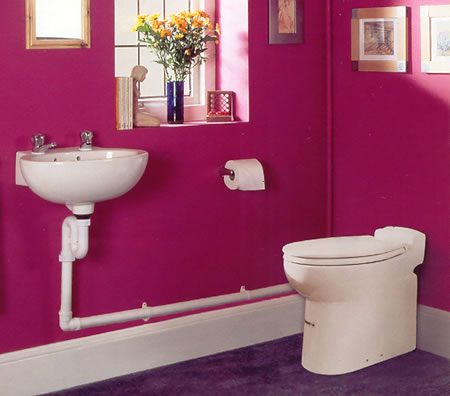

Hand-basin
This modern shaped self-contained china toilet is especially designed with several ideas in mind; for situations where there is not enough space, as a toilet that uses a minimum amount of water and as a toilet for use with people that have physical limitations. The flushing mechanism is electrically timed to allow approximately 3.5 liters (1.3 USG) of water to pass through the toilet.
The Sanicompact has no external water tank as the flushing mechanism is built in and is totally electric. After use, one presses a pneumatic button on top of the bowl, this activates a timer and a solenoid valve in order to fill and wash the sides of the bowl. The motor starts and the waste and paper are sucked inside, where it is macerated and pumped away. The motor stops after approximately 15 seconds and the timer programs the refill of the bowl with fresh water.
The discharge pipe of the Sanicompact is 1 inch in diameter, the pump operates at 7 PSI and pumps the effluent upwards to 9 feet and/or 100 feet horizontally. The discharge pipe-work may be made with either copper or solvent welded plastic material, provided that a consistent gravity fall is maintained throughout the run.
At the soil-stack end of the pipe run the small-bore pipe-work must be connected to the waste by means of an appropriate TY fitting. Electrical supply to the Sanicompact is 120V, 15 Amp. The system should be connected to a Ground Fault Circuit Interrupter circuit.
